Overview
Your Virtual-Call Cloud PBX offers two related features for team communication: Call Pickup and Paging/Intercom.
- Call Pickup: Allows you to answer a call ringing on another extension by dialing a feature code on your own phone.
- Paging: One-way announcement to a group of extensions — recipients cannot respond.
- Intercom: Two-way communication between extensions — both sides can speak.
Prerequisites
- Administrator access to the Virtual-Call Cloud PBX
- At least two configured extensions
Part 1: Call Pickup
Call Pickup is controlled exclusively via feature codes. There is no separate configuration menu — the feature is active by default.
Feature Codes for Pickup
| Feature Code | Function | Description |
|---|---|---|
| *4 | Group Call Pickup | Picks up a ringing call within your own ring group. Dial *4 to answer a call from any extension in your group. |
| *04 | Extension Pickup | Picks up a ringing call on a specific extension. Dial *04 followed by the extension number (e.g., *041001). |
Tip: Feature codes can be customized or disabled by the administrator under Call Features → Feature Code → Call Pickup.
Part 2: Paging/Intercom

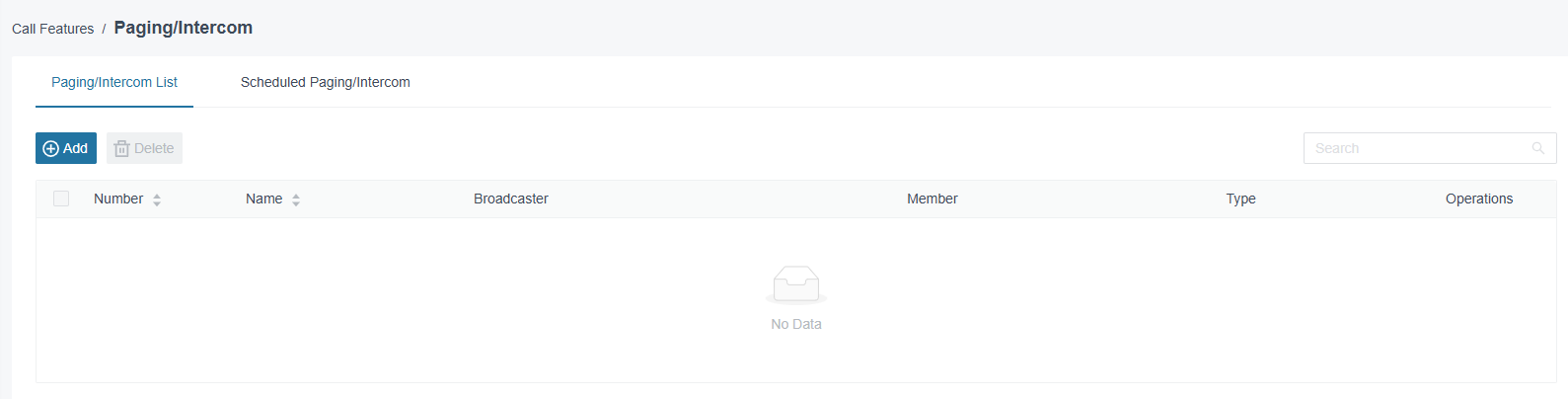

Paging and Intercom groups are managed under Call Features → Paging/Intercom. There are two tabs:
- Paging/Intercom List: Overview and management of paging/intercom groups
- Scheduled Paging/Intercom: Automated announcements at scheduled times

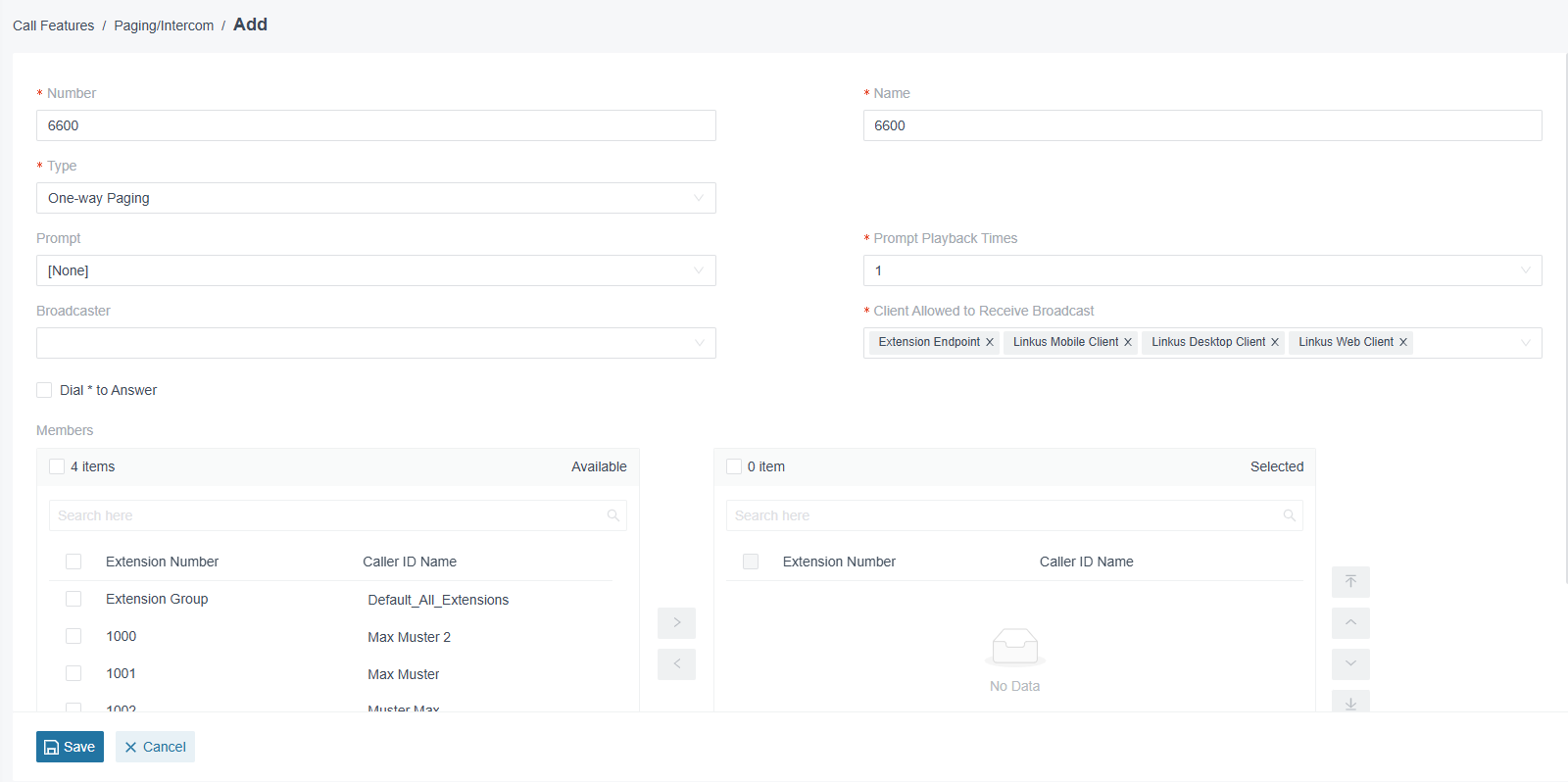

Creating a Paging/Intercom Group
- Navigate to Call Features → Paging/Intercom.
- Click Add.
- Configure the settings (see table below).
- Assign members.
- Click Save.
| Setting | Description | Required |
|---|---|---|
| Number | The internal number the broadcaster dials to start the announcement (e.g., 6600). | Yes |
| Name | A descriptive name for the paging group. | Yes |
| Type | One-way Paging (recipients cannot respond) or Two-way Intercom (both sides can speak). | Yes |
| Prompt | Optional announcement played before the broadcast begins. | No |
| Prompt Playback Times | How many times the prompt is repeated before the broadcast starts. | Yes |
| Broadcaster | The extension authorized to start the broadcast. Leave empty to allow any extension. | No |
| Client Allowed to Receive Broadcast | Which endpoints receive the broadcast: Extension Endpoint, Linkus Mobile/Desktop/Web Client. | Yes |
| Dial * to Answer | When enabled, recipients of one-way paging can press * to switch to two-way conversation. | No |
Assigning Members
In the lower section, move extensions from Available to Selected to add them to the paging group.
Scheduled Paging/Intercom

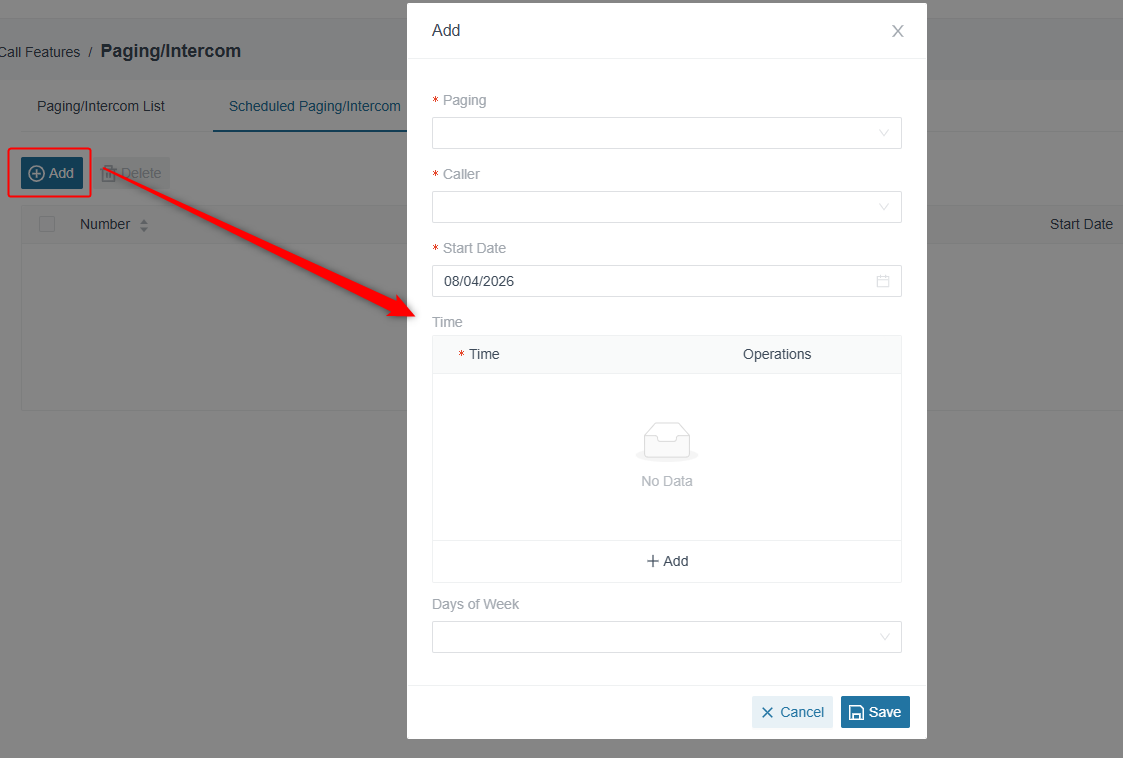

Under the Scheduled Paging/Intercom tab, set up automatic announcements at specific times.
- Switch to the Scheduled Paging/Intercom tab.
- Click Add.
- Select the Paging group and Caller.
- Set the Start Date, Time(s), and Days of Week.
- Click Save.
Intercom via Feature Code
| Feature Code | Function | Description |
|---|---|---|
| *6 | Intercom | Dial *6 followed by the extension number (e.g., *61001) for a direct intercom connection. The recipient's phone answers automatically (if supported). |
Tip: Feature codes can be customized or disabled by the administrator under Call Features → Feature Code → Intercom.
Auto Answer for Intercom
Enable Auto Answer/Intercom Call in the Linkus Clients tab of the extension configuration for automatic paging/intercom answering.
Note: This setting only applies to paging/intercom calls. Regular incoming calls are not affected. Ensure the Linkus Client is updated to the latest version.
Common Scenarios
Scenario 1: Warehouse Announcement (One-way Paging)
- Create a paging group with type One-way Paging and add warehouse extensions as members.
Scenario 2: Reception Intercom (Two-way Intercom)
- Create a paging group with type Two-way Intercom, or use feature code
*6+ extension number.
Scenario 3: Picking Up a Colleague's Call
- Dial
*04+ extension number, or*4for group pickup.
Scenario 4: Daily Break Announcement (Scheduled Paging)
- Create a paging group with a recorded prompt and set up scheduled paging (e.g., Mon–Fri at 12:00 PM).
Best Practices
- Use One-way Paging for large groups, Two-way Intercom for small groups or direct communication.
- Enable Auto Answer/Intercom Call on Linkus Clients that should receive paging broadcasts.
- Restrict the Broadcaster to authorized extensions to prevent unintended announcements.
- Inform employees about pickup codes
*4and*04.
